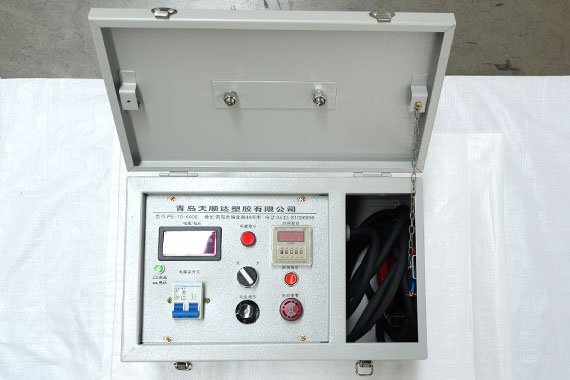

Electro Fusion Welding Machine

Product Details

Product details

Electric melting welder is a kind of mechanical equipment used to weld plastic pipes by electrifying the electric melting pipe fittings to make the thermofuse embedded in the electric melting pipe fittings heat, so as to cause the surface of pipes or pipe fittings melting, and then carrying out the welding after cooling and solidifying.

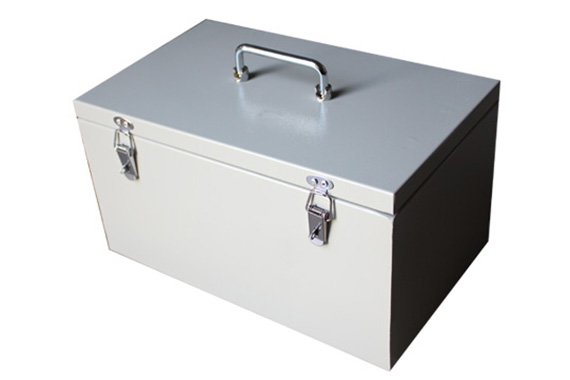

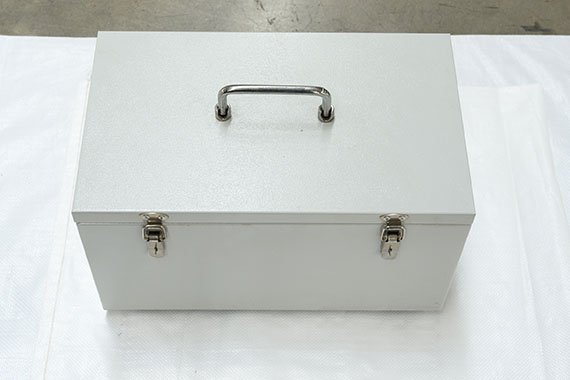

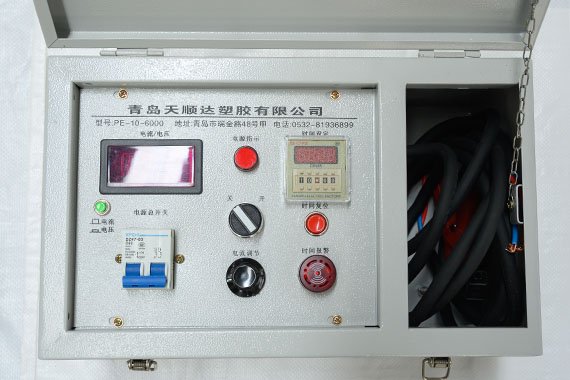

The electric melting welder of TSD is developed on the basis of introduced Korean technology. The machine is characterized in compact structure design, small size, light weight and easy movement, so as to improve the work efficiency. The machine is equipped with a hot and cold dual-control fan to ensure quick heat dissipation and extend its service life. With the temperature and automatic current control, as well as integrated circuit design, the weld quality and construction efficiency is improved. In addition, the current and voltage dual warning mode is adopted to increase the safety and reliability of construction.


Product Specification

Product details

Basic parameters

Item

Specifications

Other

Model

PE-10-6000


Input Voltage

AC 380V/220V


Output Voltage

30-220V/380V


Output Current

0-50A

10%

Dimensions (mm)

340﹡440﹡300


Weight

約12KG

10%

Input/Output Wire

6mm2/10mm2

10%


Welding Time Reference Table (s S)

規(guī) 格

外界溫度（℃）

直徑50—400mm

Pipe Diameter

直徑450—1200mm

Pipe Diameter

直徑1200以上

Pipe Diameter

低于0

680s

840s

1300s

1—4

650s

810s

1250s

5—9

630s

780s

1200s

10—14

610s

750s

1150s

15—19

590s

720s

1000s

20—24

570s

690s

950s

25—29

550s

660s

900s

30—34

530s

630s

850s

< 35

510s

600s

800s

Welding time will be changed at ±5—10% according to working conditions.
