PE Electro Fusion Welding band for Steel Reinforced HDPE Spiral pipes
Product Name:Electric Melting Band Special for Steel Reinforced Polyethylene Spiral Corrugated Pipes
ID: A005
Date:2020-05-19
Product Details
Product details

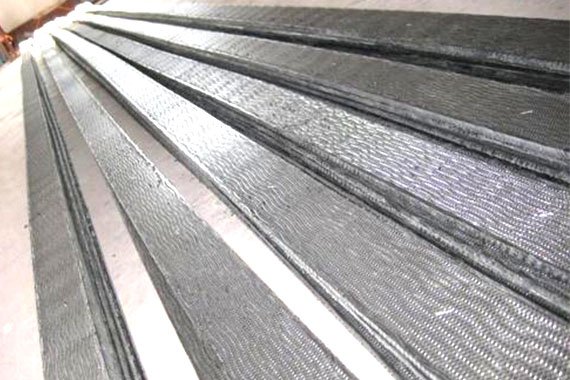

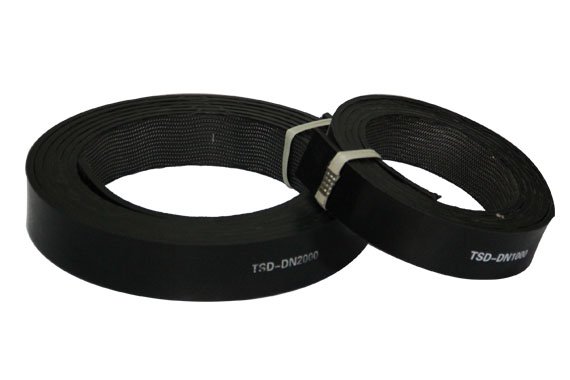

Electric melting band is manufactured by compositing an electric heating net on a PE sheet in high temperature.
Features:
① According to the filament winding feature of pipes, the width of the peak valley is generally between 60 and 80mm, the band is narrow, and a fusion welding is carried out along the pipe cut.
② Due to various constraints, the tightness of the pipe system can’t be guaranteed after the welding.
③ To make the pipes meet the requirements of projects, the inner welding by outer connection is often adopted, namely, use a hand-held extrusion-type welding torch to weld on the inner wall along the cut.
Product Specification
Product details
Diameter(mm) | Specifications(mm) |
DN500 | 1900×50×7 |
DN600 | 2200×50×7 |
DN710 | 2550×50×7 |
DN800 | 2850×60×7 |
DN900 | 3150×60×7 |
DN1000 | 3500×60×7 |
DN1100 | 3800×60×9 |
DN1200 | 4150×70×9 |
DN1300 | 4450×70×9 |
DN1400 | 4750×70×9 |
DN1500 | 5000×70×9 |
DN1600 | 5350×70×9 |
DN1700 | 5700×70×9 |
DN1800 | 6010×70×9 |
DN2000 | 6700×70×9 |
DN2200 | 7350×70×9 |
